OpenAI

在 E2B 中连接OpenAI

准备工作

pip install openai e2b-code-interpreter

准备 openai 的 key, 设置环境变量:

export OPENROUTER_API_KEY="sk-or-v1-066c495243xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
export OPENROUTER_BASE_URL="https://openrouter.ai/api/v1"
export OPENAI_API_KEY=$OPENROUTER_API_KEY
export OPENAI_BASE_URL=$OPENROUTER_BASE_URL

因为在大陆不方便直接使用 openai，所以我一般用 openrouter 来调用 openai 的 api。上面那个 key 是 openrouter 的 key。

简单调用

mkdir -p ~/work/code/e2b/connect-llm/openai-python
cd ~/work/code/e2b/connect-llm/openai-python

新建一个 python 文件:

vi connect-llm-openai.py

内容为:

# pip install openai e2b-code-interpreter
from openai import OpenAI
from e2b_code_interpreter import Sandbox

# Create OpenAI client
client = OpenAI()
system = "You are a helpful assistant that can execute python code in a Jupyter notebook. Only respond with the code to be executed and nothing else. Strip backticks in code blocks."
prompt = "Calculate how many r's are in the word 'strawberry'"

# Send messages to OpenAI API
response = client.chat.completions.create(
    model="gpt-4o",
    messages=[
        {"role": "system", "content": system},
        {"role": "user", "content": prompt}
    ]
)

# Extract the code from the response
code = response.choices[0].message.content

# Execute code in E2B Sandbox
if code:
    # print codo conteent for debug
    print(code)
    with Sandbox() as sandbox:
        execution = sandbox.run_code(code)
        result = execution.text

    print(result)

运行:

python connect-llm-openai.py

输出为:

分析：

对 openAI 的调用很简单，就是直接调用 openai 的 chat api。

不过在 system 中指明要 openai 返回可以用来计算结果的可执行代码，而不是直接给结果。

Only respond with the code to be executed and nothing else. Strip backticks in code blocks.

只返回要执行的代码，不要返回其他内容。去掉代码块中的反引号。

为此，我增加了 print 代码内容，方便调试。可以看到返回的代码内容是这样的：
```
word = 'strawberry'
count_r = word.count('r')
count_r
```

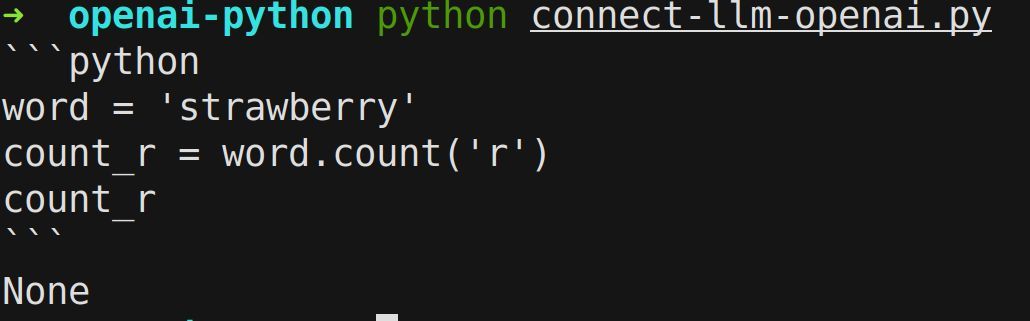

可以看到，返回的是纯粹的 python 代码，没有反引号。反引号是什么？修改一下输入，把 Strip backticks in code blocks. 改成 Deep backticks in code blocks., 然后再运行，输出为：

可以看到，返回的内容中，有用于表示代码块的三个反引号。这是 markdown 中表示代码块的语法，但这个会导致 e2b 执行失败：最后一行是 None，表示执行失败。

e2b sandbox 相关的代码就三行，极其的简练，一句废话都没有：

# 1. 创建 sandbox
with Sandbox() as sandbox:
    # 2. 执行代码
    execution = sandbox.run_code(code)
    # 3. 获取执行结果
    result = execution.text

e2b 的 sandbox 就是用来执行 openAI 的 chat API 生成并返回的可执行代码，然后给出结果。

对比普通的让 OpenAI 直接返回结果的调用：

@startuml
hide footbox
participant client
participant OpenAI

client -> OpenAI: chat()
note right
User: Calculate how many r's are in the word 'strawberry'
end note
OpenAI --> client: response result
note right: 3

上面的例子中，OpenAI 不直接返回结果，而是返回一段可执行代码。然后我们用 e2b 的 sandbox 执行返回的可执行代码来计算结果：

@startuml
hide footbox
participant client
participant OpenAI

client -> OpenAI: chat()
note right
System: Only respond with the code to be executed and nothing else.
User: Calculate how many r's are in the word 'strawberry'
end note
OpenAI --> client: response with code
note right
word = 'strawberry'
count_r = word.count('r')
count_r
end note

create control  sandbox
client -> sandbox: create_sandbox()
sandbox -> sandbox: run_code(code)
note right
word = 'strawberry'
count_r = word.count('r')
count_r
end note
client <-- sandbox: code_execution_result
note right: 3
@enduml

函数调用

稍微复杂一点的例子，就是使用 AI 的函数调用/Function calling。

mkdir -p ~/work/code/e2b/connect-llm/openai-python
cd ~/work/code/e2b/connect-llm/openai-python

新建一个 python 文件:

vi connect-llm-openai-function-call.py

内容为:

# pip install openai e2b-code-interpreter
import json
from openai import OpenAI
from e2b_code_interpreter import Sandbox

# Create OpenAI client
client = OpenAI()
model = "gpt-4o"

# Define the messages
messages = [
    {
        "role": "user",
        "content": "Calculate how many r's are in the word 'strawberry'"
    }
]

# Define the tools
tools = [{
    "type": "function",
    "function": {
        "name": "execute_python",
        "description": "Execute python code in a Jupyter notebook cell and return result",
        "parameters": {
            "type": "object",
            "properties": {
                "code": {
                    "type": "string",
                    "description": "The python code to execute in a single cell"
                }
            },
            "required": ["code"]
        }
    }
}]

# Generate text with OpenAI
response = client.chat.completions.create(
    model=model,
    messages=messages,
    tools=tools,
)

# Append the response message to the messages list
response_message = response.choices[0].message
messages.append(response_message)

# Execute the tool if it's called by the model
if response_message.tool_calls:
    for tool_call in response_message.tool_calls:
        if tool_call.function.name == "execute_python":
            # Create a sandbox and execute the code
            with Sandbox() as sandbox:
                code = json.loads(tool_call.function.arguments)['code']
                execution = sandbox.run_code(code)
                result = execution.text

            # Send the result back to the model
            messages.append({
                "role": "tool",
                "name": "execute_python",
                "content": result,
                "tool_call_id": tool_call.id,
            })

# Generate the final response
final_response = client.chat.completions.create(
    model=model,
    messages=messages
)

print(final_response.choices[0].message.content)

运行:

python connect-llm-openai-function-call.py

输出为:

The word "strawberry" contains 3 'r's.

分析：

这次对 openAI 的调用要复杂一些，用到了 OpenAI 的 chat API 的 tools 功能。

# 定义了一个工具
tools = [{
    # 工具的类型是 function
"type": "function",
"function": {
    # 工具的名称
    "name": "execute_python",
    # 工具的描述
    "description": "Execute python code in a Jupyter notebook cell and return result",
    # 工具的参数
    "parameters": {
        "type": "object",
        "properties": {
            "code": {
                "type": "string",
                "description": "The python code to execute in a single cell"
            }
        },
        "required": ["code"]
    }
}
}]

这是告诉 openai：我这里有一个名为 execute_python 的 function，你可以把它当成工具来用，如果要执行 python 代码，可以调用这个工具。

调用 openAI，user 设置依然是计算 “strawberry” 中 “r” 的个数，但要求 openai 使用我们定义的工具，也就是能够执行 python 代码的 execute_python 函数。

messages = [
{
    "role": "user",
    "content": "Calculate how many r's are in the word 'strawberry'"
}
]
......
response = client.chat.completions.create(
    model=model,
    messages=messages,
    tools=tools,
)

通过增加日志，打印出 response 的内容：

ChatCompletion(id='gen-1749302174-f823d4hLS2G40WQwXec9', choices=[Choice(finish_reason='tool_calls', index=0, logprobs=None, message=ChatCompletionMessage(content='', refusal=None, role='assistant', audio=None, function_call=None, tool_calls=[ChatCompletionMessageToolCall(id='call_ulBxOTZOSx5uaWGXv1ZpMIJs', function=Function(arguments='{"code":"word = \'strawberry\'\\nr_count = word.count(\'r\')\\nr_count"}', name='execute_python'), type='function', index=0)], reasoning=None), native_finish_reason='tool_calls')], created=1749302174, model='openai/gpt-4o', object='chat.completion', service_tier=None, system_fingerprint='fp_5d58a6052a', usage=CompletionUsage(completion_tokens=32, prompt_tokens=75, total_tokens=107, completion_tokens_details=CompletionTokensDetails(accepted_prediction_tokens=None, audio_tokens=None, reasoning_tokens=0, rejected_prediction_tokens=None), prompt_tokens_details=PromptTokensDetails(audio_tokens=None, cached_tokens=0)), provider='Azure')

打印出 response_message 的内容为：

ChatCompletionMessage(content='', refusal=None, role='assistant', audio=None, function_call=None, tool_calls=[ChatCompletionMessageToolCall(id='call_lSfGvAFu230WAm0eQIdkHfbi', function=Function(arguments='{"code":"word = \'strawberry\'\\ncount_r = word.count(\'r\')\\ncount_r"}', name='execute_python'), type='function', index=0)], reasoning=None)

tool_calls 数组中有一个 ChatCompletionMessageToolCall 对象，定义了一个 function： name 是 execute_python，参数是 “code”，内容为 “word = 'strawberry'\ncount_r = word.count('r')\ncount_r”，这是一段可执行的 python 代码。

根据 openai 的返回结果，我们可以知道，openai 会根据我们定义的工具，生成一段可执行的 python 代码，并返回给我们。

这里解析 openai 返回的 tool_calls 数组，并得到其中的可执行代码：

if response_message.tool_calls:
for tool_call in response_message.tool_calls:
    if tool_call.function.name == "execute_python":
        ......
        code = json.loads(tool_call.function.arguments)['code']

然后我们用 e2b 的 sandbox 执行返回的可执行代码来计算结果：
```
with Sandbox() as sandbox:
    execution = sandbox.run_code(code)
    result = execution.text
```
这里的 result 打印出来的结果是 “3”，和上一个例子上类似。

不同的是，这次的结果不直接返回给用户，而是通过 tool 返回给 openai 的模型:

# Send the result back to the model
messages.append({
    "role": "tool",
    "name": "execute_python",
    "content": result,
    "tool_call_id": tool_call.id,
})

通过增加日志，打印出 messages 的内容：

[{'role': 'user', 'content': "Calculate how many r's are in the word 'strawberry'"}, ChatCompletionMessage(content='', refusal=None, role='assistant', audio=None, function_call=None, tool_calls=[ChatCompletionMessageToolCall(id='call_phNLl8JrmZOmjj1WE4hhYAMK', function=Function(arguments='{"code":"word = \'strawberry\'\\ncount_r = word.count(\'r\')\\ncount_r"}', name='execute_python'), type='function', index=0)], reasoning=None), {'role': 'tool', 'name': 'execute_python', 'content': '3', 'tool_call_id': 'call_phNLl8JrmZOmjj1WE4hhYAMK'}]

再次调用 openai 的 chat API，这次调用时，openai 会根据我们返回的 tool 结果，生成最终的响应：
```
final_response = client.chat.completions.create(
    model=model,
    messages=messages
)
```

在 function calling 的例子中，我们会告知 openai 我们有一个工具 execute_python，它可以执行 python 代码并返回结果。然后 openai 会根据我们的请求，生成一段可执行的 python 代码，并返回给我们表示它希望通过 function calling 的方式调用我们定义的 execute_python 工具。在得到需要执行的代码后，我们用 e2b 的 sandbox 执行返回的可执行代码来计算结果，并把结果返回给 openai 的模型。最后，openai 的模型会根据我们返回的结果，生成最终的响应。流程图如下：

@startuml
hide footbox
participant client
participant OpenAI

client -> OpenAI: chat()
note right
User: Calculate how many r's are in the word 'strawberry'
Tools: execute_python(code)
end note
group Function_Calling
OpenAI --> client: execute_python(code)
note right
tool_calls:
    function name: execute_python
    arguments code:
        word = 'strawberry'
        count_r = word.count('r')
        count_r
end note

client -> client: parse to get code

create control  sandbox
client -> sandbox: create_sandbox()
sandbox -> sandbox: run_code(code)
note right
word = 'strawberry'
count_r = word.count('r')
count_r
end note
client <-- sandbox: code_execution_result
note right: 3

client -> client: append result to messages

client -> OpenAI: chat()
note right
User: Calculate how many r's are in the word 'strawberry'
Tool: execute_python() with result=3
end note
end

OpenAI --> client:
note right
The word "strawberry" contains 3 'r's.
end note
@enduml

如果我们仅仅关注 function calling 的实现，并忽略 e2b 的 sandbox 的执行，那么 openai 执行 function calling 的子流程图可以简化为：

@startuml
hide footbox
participant client
participant OpenAI

group Function_Calling
OpenAI --> client: execute_python(code)
note right
tool_calls:
    function name: execute_python
    arguments code:
        word = 'strawberry'
        count_r = word.count('r')
        count_r
end note

client -> OpenAI: chat()
note right
User: Calculate how many r's are in the word 'strawberry'
Tool: execute_python() with result=3
end note
end
@enduml

受限于 openai 的模型，它不能主动发起调用，只能在 client chat 调用的 response 里面表明它需要通过 function calling 的方式来调用我们定义的工具，然后 client 进行配合，再次发起一次新的 chat 请求，以便把 function calling 的结果返回给 openai 的模型。

这里相当于 openai 以 chat response 的形式执行了一次 function calling request，然后 client 以第二次 chat request 的形式对 function calling 进行了 response。

逻辑上的交互流程图如下：

@startuml
hide footbox
participant client
participant OpenAI

client -> OpenAI: chat request

group Function_Calling
OpenAI -> client: funciton calling request
note right
chat response with funciton calling
end note

client --> OpenAI: funciton calling response
note right
new chat request with funciton calling result
end note
end

OpenAI --> client: chat response
@enduml
