华硕z690-p d4主板
中端 z690 ATX大板,主力机器
主板资料
华硕官方网站:
https://www.asus.com.cn/motherboards-components/motherboards/prime/prime-z690-p-d4/
主板优势:
- 价格便宜,超频能力尚可,用来超频13700k 和旗舰主板差距不大,够用了。
- 有四条pcie16x:只有一条是pcie5.0 16x(实际16x), 两条 pcie3.0 16x(实际4x),一条pcie4.0 16x(实际4x)
bios 升级到最新版本 3802.
bios 设置
常规设置
F7 进入bios高级设置,“Exit” –> “Load Optimized Default”.
“Advanced” –> “CPU Configuration” –> “CPU - Power Management Control”:
- Boot performance mode: “Max Non-Turbo Performace”
- CPU c-state: enabled
- Package C State Limit: auto
“Advanced” -> “PCI subsystem Settings”:
- SR-IOV Support [Enabled]
“Advanced” -> “APM Configuration”:
- Restore AC Power Loss: power on
“Monitor” –> “Q-Fan Tuning”
- CPU Fan Q-Fan Control: pwm mode
- CPU Fan Profile: Silent
- 其他类似
“Boot” –> “Boot Configuration”
- Fast Boot: disabled
- Boot Logo Display: disabled
- Bootup Numlock State: off
- Wait For ‘F1’ If Error: disabled
- Setup Mode: Advanced Mode
cpu超频设置
不追求极致性能,只追求稳定,因此只简单设置一下 cpu 频率和电压。
“AI Tweaker”
- Performance Preferences: asus advanced oc profile
- Ai Overclock Tuner: “Manual”
- Asus MultiCore Enhancement: disabled - enfore all limits
- Performance Core Ratio: “Sync All Cores”
- All-Core Ratio Limit: 54
- Efficific Core Ratio: “Sync All Cores”
- All-Core Ratio Limit: 42
- AVX related Controls:
- avx2: enabled
- avx2 ratio offset to per-core ratio limit: user specify
- avx2 ratio offset: 10
- DIGI+ VRM:
- CPU Load-line Calibration: Level 6
- Internal CPU Power Management:
- maximum cpu core temperature: 100
- Long Duration Package Power Limit: 253
- Short Duration Package Power Limit: 280
- Ring Down Bin: “Auto”
- Min. CPU Cache Ratio: 8
- Max. CPU Cache Ratio: 48
- Global Core SVID Voltage: adaptive mode
- offset mode sign: -
- cpu core voltage offset: 0.1
- CPU Syatem Agent Voltage: 1.2v
- CPU Input Voltage [1.90000]

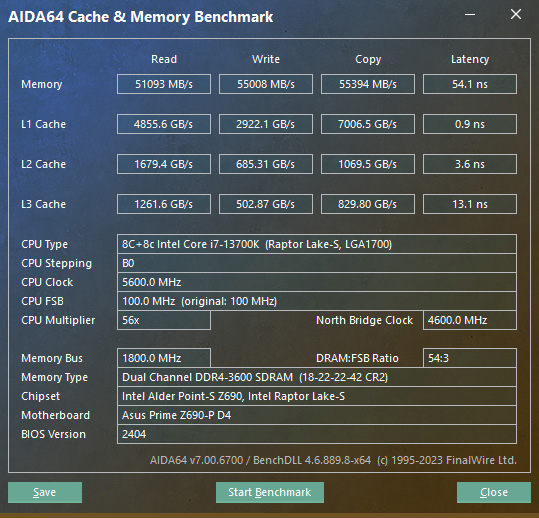

内存超频设置
“AI Tweaker”
- BCLK Frequency : DRAM Frequency Ratio [100:100]
- Memory Controller : DRAM Frequency Ratio [1:1]
- DRAM Frequency [DDR4-4000MHz]
- DRAM Voltage [1.35]
- IVR Transmitter VDDQ Voltage [1.35]
“AI Tweaker” -> ““DRAM Timing Control”:
DRAM CAS# Latency [18]
DRAM RAS# to CAS# Delay [22]
DRAM RAS# PRE Time [22]
DRAM RAS# ACT Time [42]
DRAM Command Rate [1N]
DRAM RAS# to RAS# Delay L [12]
DRAM RAS# to RAS# Delay S [9]
DRAM REF Cycle Time [660]
DRAM REF Cycle Time 2 [400]
DRAM REF Cycle Time 4 [250]
DRAM Refresh Interval [65535]
DRAM WRITE Recovery Time [24]
DRAM READ to PRE Time [12]
DRAM FOUR ACT WIN Time [24]
DRAM WRITE to READ Delay [5]
DRAM WRITE to READ Delay L [15]
DRAM WRITE to READ Delay S [6]
DRAM CAS to CAS Delay L [8]
DRAM CKE Minimum Pulse Width [12]
DRAM Write Latency [20]
