在esxi上运行iperf3
使用iperf3验证网卡的速度
准备软件
在esxi7上准备iperf3
esxi 7 自带 iperf3，位于 /usr/lib/vmware/vsan/bin/iperf3，使用时注意先执行以下命令：
cp /usr/lib/vmware/vsan/bin/iperf3 /usr/lib/vmware/vsan/bin/iperf3.copy
复制一份作为服务器端使用，否则直接通过 iperf3 运行服务器端，会报错：
/usr/lib/vmware/vsan/bin/iperf3 -s -B 192.168.0.40
iperf3: error - unable to start listener for connections: Operation not permitted
iperf3: exiting
关于这一点请参考：
另外测试之前关闭esxi的防火墙：
esxcli network firewall set --enabled false
在windows10上准备iperf3
从 iperf 官方网站上下载 iperf3：
iPerf - Download iPerf3 and original iPerf pre-compiled binaries
准备网络
网络连接概述
两台机器之间一共有三组网络连接：
- 千兆网络：esxi主机和开发机器之间通过千兆交换机连接，都是千兆有线网卡， ip地址设置为 192.168.0.10 和 192.168.0.40
- 五千兆高速网络：esxi主机上插一块 aqn-108 五千兆网卡（支持windows、linux和exsi），开发机器主板自带一块 aqn-111c 五千兆网卡（支持windows、linux，不支持黑苹果），通过网线直连，ip地址设置为 10.0.0.10 和 10.0.0.40
- 40G超高速网络：esxi主机上插一块 hp 544+ 40G网卡（支持windows、linux，exsi不确定），开发机器同样插一块 hp 544+ 40G网卡（支持windows、linux，黑苹果不确定），通过40G QSFP网线直连，ip地址设置为 192.168.1.10 和 192.168.1.40
esxi网络设置
5G网络设置

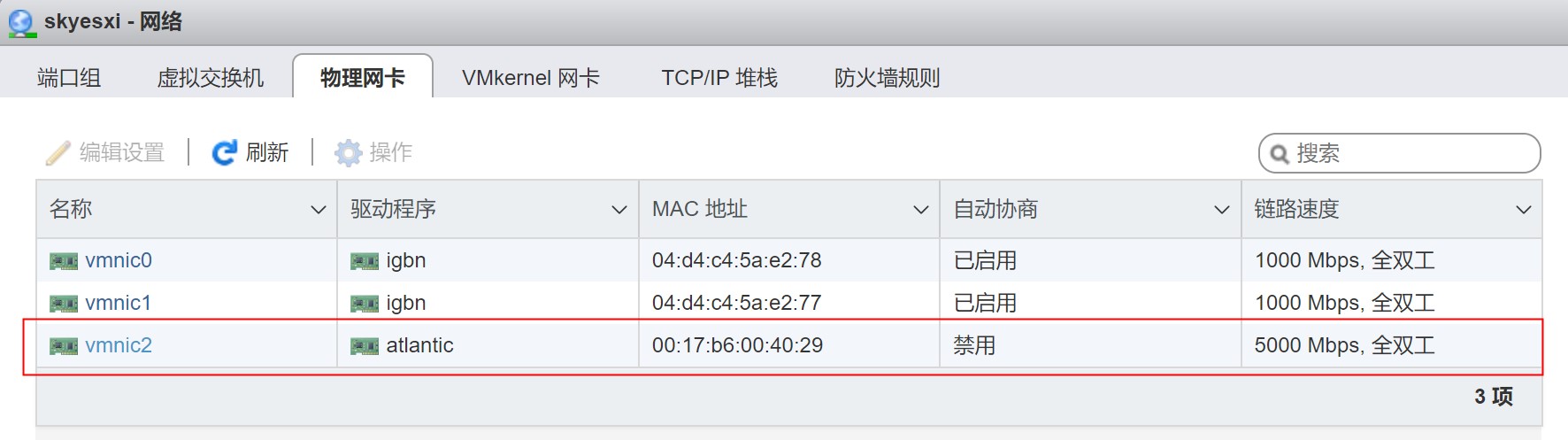

首先确保5G物理网卡已经识别，链路速度为5000Mbps，全双工。

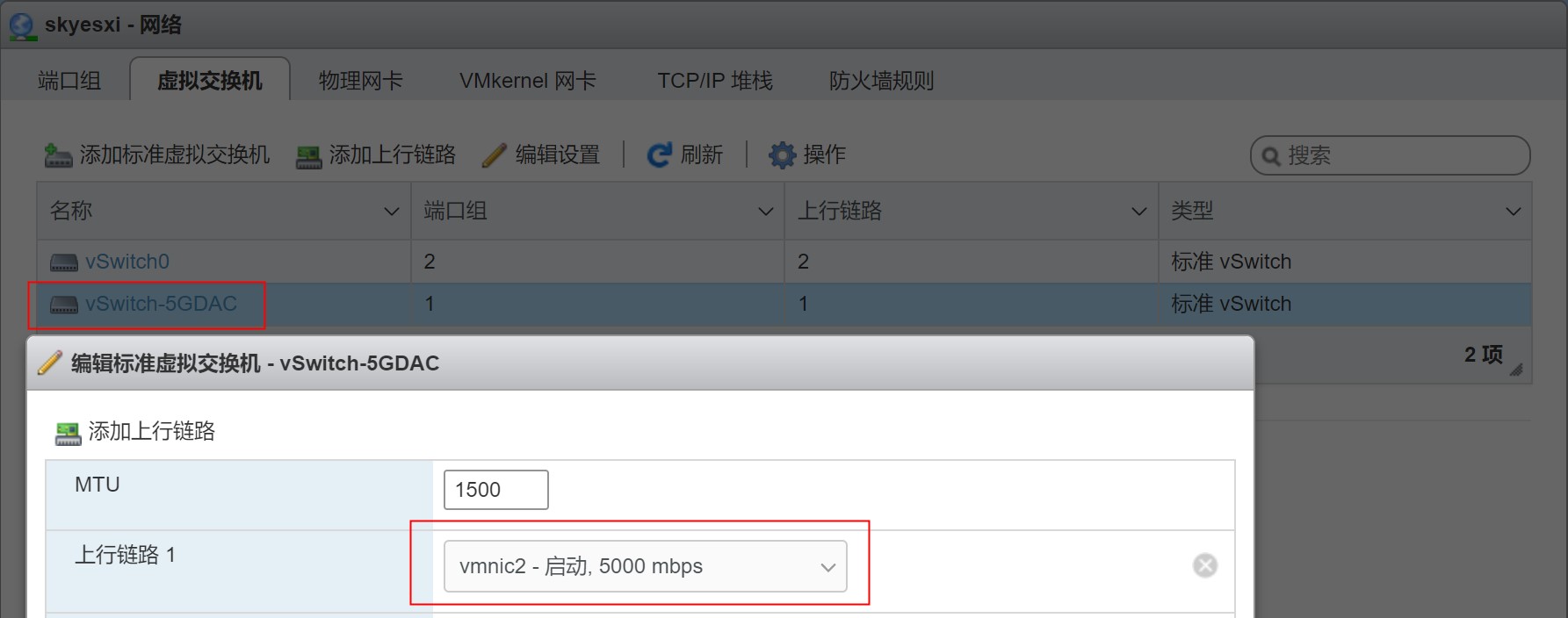

开始创建5g网络的虚拟交换机，上行链路选择上面的5g网卡：

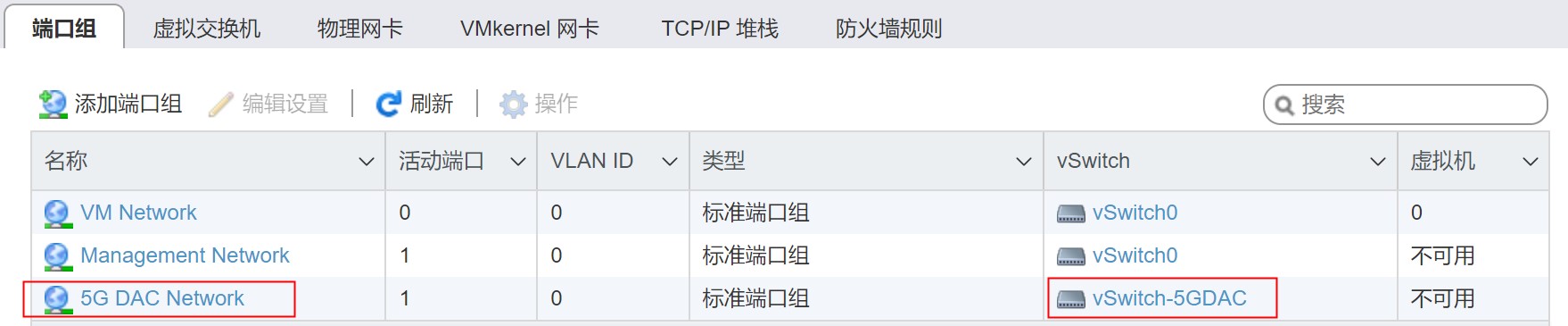

再添加5g的端口组，虚拟交换机选择前面创建的5g交换机：

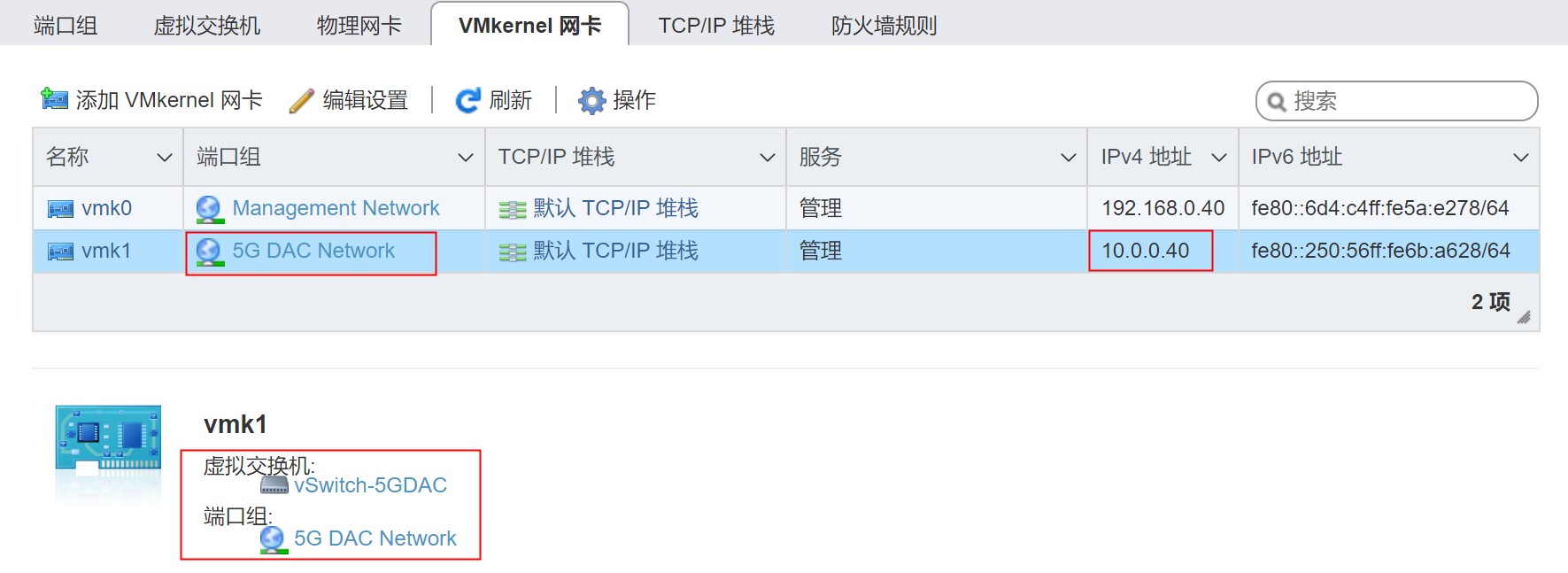

最后在vmkernel网卡中添加一个vmkernel网卡：

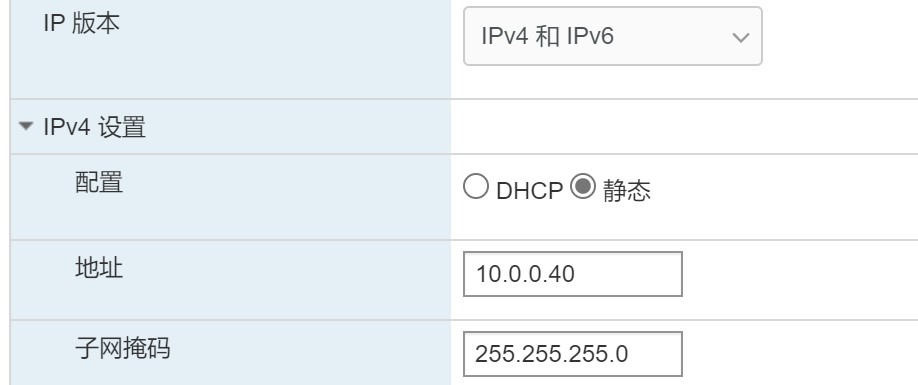

ip地址的设置为：
windows网络设置
5G网络设置

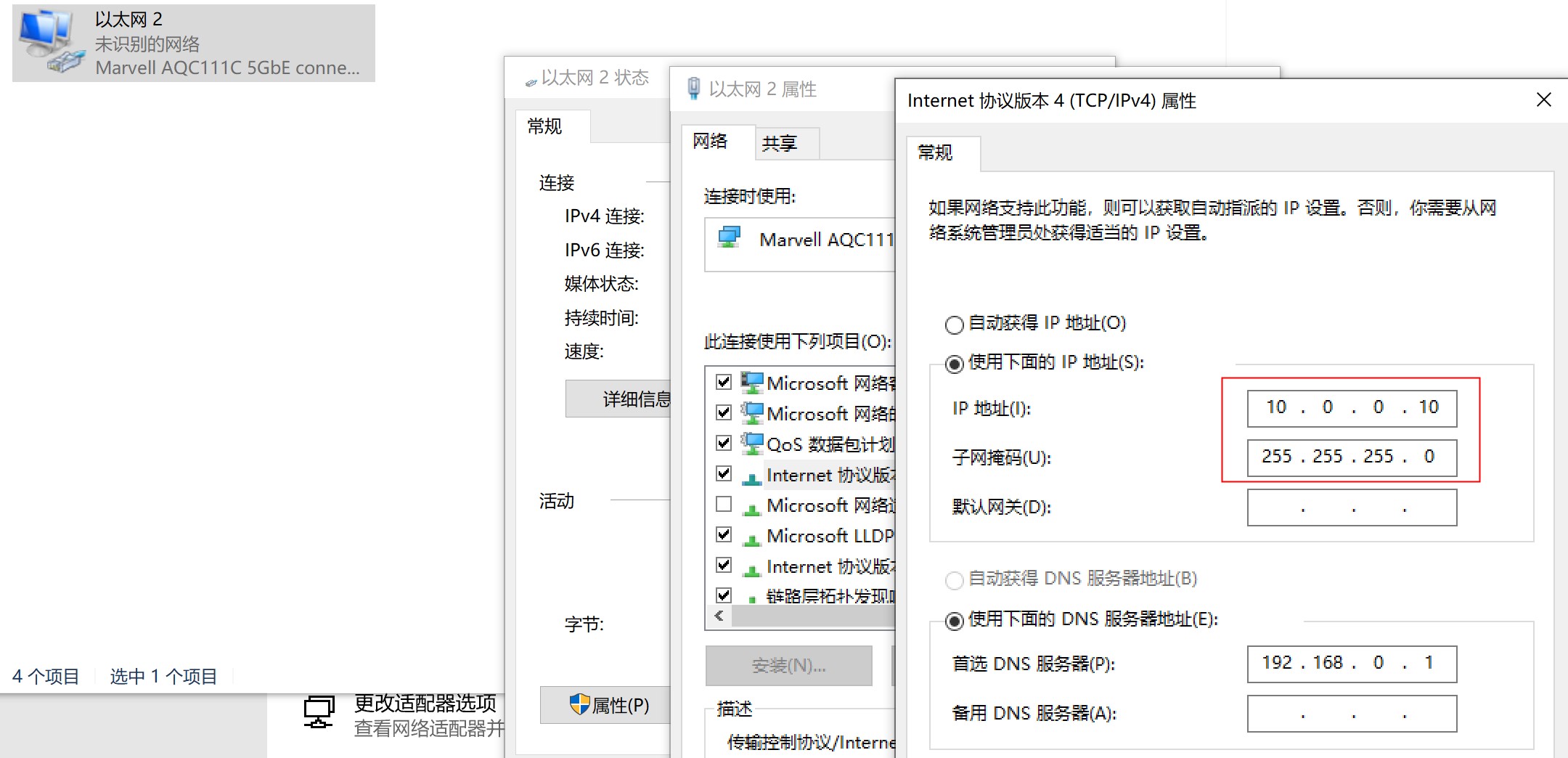

5g网卡的适配器设置如下：
测试
esxi7作为服务器端
测试千兆网络
服务器端 esxi ip地址为 192.168.0.40：
/usr/lib/vmware/vsan/bin/iperf3.copy -s -B 192.168.0.40
-----------------------------------------------------------
Server listening on 5201
-----------------------------------------------------------
客户端为windows10，启动iperf3.exe，走千兆网络，带宽接近千兆的：
iperf3.exe -n 1000M -c 192.168.0.40
Connecting to host 192.168.0.40, port 5201
[ 4] local 192.168.0.10 port 65066 connected to 192.168.0.40 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 110 MBytes 923 Mbits/sec
[ 4] 1.00-2.00 sec 110 MBytes 921 Mbits/sec
[ 4] 2.00-3.00 sec 109 MBytes 917 Mbits/sec
[ 4] 3.00-4.00 sec 110 MBytes 918 Mbits/sec
[ 4] 4.00-5.00 sec 109 MBytes 918 Mbits/sec
[ 4] 5.00-6.00 sec 110 MBytes 919 Mbits/sec
[ 4] 6.00-7.00 sec 108 MBytes 902 Mbits/sec
[ 4] 7.00-8.00 sec 109 MBytes 918 Mbits/sec
[ 4] 8.00-9.00 sec 110 MBytes 918 Mbits/sec
[ 4] 9.00-9.15 sec 16.0 MBytes 910 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-9.15 sec 1000 MBytes 917 Mbits/sec sender
[ 4] 0.00-9.15 sec 1000 MBytes 917 Mbits/sec receiver
iperf Done.
测试五千兆网络
服务器端 esxi ip地址为 10.0.0.40：
/usr/lib/vmware/vsan/bin/iperf3.copy -s -B 10.0.0.40
-----------------------------------------------------------
Server listening on 5201
-----------------------------------------------------------
客户端为windows10，启动iperf3.exe，走五千兆直连网络，单线程带宽只有2g多一点：
iperf3.exe -n 5000M -c 10.0.0.40
Connecting to host 10.0.0.40, port 5201
[ 4] local 10.0.0.10 port 63397 connected to 10.0.0.40 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 244 MBytes 2.05 Gbits/sec
[ 4] 1.00-2.00 sec 251 MBytes 2.11 Gbits/sec
[ 4] 2.00-3.00 sec 254 MBytes 2.13 Gbits/sec
[ 4] 3.00-4.00 sec 251 MBytes 2.11 Gbits/sec
[ 4] 4.00-5.00 sec 263 MBytes 2.20 Gbits/sec
[ 4] 5.00-6.00 sec 257 MBytes 2.15 Gbits/sec
[ 4] 6.00-7.00 sec 259 MBytes 2.17 Gbits/sec
[ 4] 7.00-8.00 sec 263 MBytes 2.20 Gbits/sec
[ 4] 8.00-9.00 sec 273 MBytes 2.29 Gbits/sec
[ 4] 9.00-10.00 sec 265 MBytes 2.23 Gbits/sec
[ 4] 10.00-11.00 sec 266 MBytes 2.23 Gbits/sec
[ 4] 11.00-12.01 sec 252 MBytes 2.10 Gbits/sec
[ 4] 12.01-13.00 sec 262 MBytes 2.22 Gbits/sec
[ 4] 13.00-14.00 sec 273 MBytes 2.29 Gbits/sec
[ 4] 14.00-15.00 sec 264 MBytes 2.21 Gbits/sec
[ 4] 15.00-16.00 sec 268 MBytes 2.25 Gbits/sec
[ 4] 16.00-17.00 sec 262 MBytes 2.20 Gbits/sec
[ 4] 17.00-18.00 sec 261 MBytes 2.19 Gbits/sec
[ 4] 18.00-19.00 sec 260 MBytes 2.18 Gbits/sec
[ 4] 19.00-19.19 sec 52.1 MBytes 2.27 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-19.19 sec 4.88 GBytes 2.19 Gbits/sec sender
[ 4] 0.00-19.19 sec 4.88 GBytes 2.19 Gbits/sec receiver
iperf Done.
通过 -P 参数指定多线程，可以使用更大的带宽，实测下来：
- 单线程带宽2.2g
- 两个线程带宽3.5g
- 三个线程带宽3.3g
- 四个线程带宽4.7g
- 再往上加线程带宽还是4.7g
iperf3.exe -c 10.0.0.40 -t 20 -P 5
Connecting to host 10.0.0.40, port 5201
[ 4] local 10.0.0.10 port 54228 connected to 10.0.0.40 port 5201
[ 6] local 10.0.0.10 port 54230 connected to 10.0.0.40 port 5201
[ 8] local 10.0.0.10 port 54231 connected to 10.0.0.40 port 5201
[ 10] local 10.0.0.10 port 54232 connected to 10.0.0.40 port 5201
[ 12] local 10.0.0.10 port 54233 connected to 10.0.0.40 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 106 MBytes 891 Mbits/sec
[ 6] 0.00-1.00 sec 106 MBytes 890 Mbits/sec
[ 8] 0.00-1.00 sec 106 MBytes 886 Mbits/sec
[ 10] 0.00-1.00 sec 125 MBytes 1.05 Gbits/sec
[ 12] 0.00-1.00 sec 123 MBytes 1.03 Gbits/sec
[SUM] 0.00-1.00 sec 567 MBytes 4.75 Gbits/sec
......
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-8.58 sec 921 MBytes 900 Mbits/sec sender
[ 4] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
[ 6] 0.00-8.58 sec 918 MBytes 897 Mbits/sec sender
[ 6] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
[ 8] 0.00-8.58 sec 912 MBytes 891 Mbits/sec sender
[ 8] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
[ 10] 0.00-8.58 sec 1.04 GBytes 1.04 Gbits/sec sender
[ 10] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
[ 12] 0.00-8.58 sec 1023 MBytes 999 Mbits/sec sender
[ 12] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
[SUM] 0.00-8.58 sec 4.73 GBytes 4.73 Gbits/sec sender
[SUM] 0.00-8.58 sec 0.00 Bytes 0.00 bits/sec receiver
iperf3: interrupt - the client has terminated
